LED Highbay Luminaires

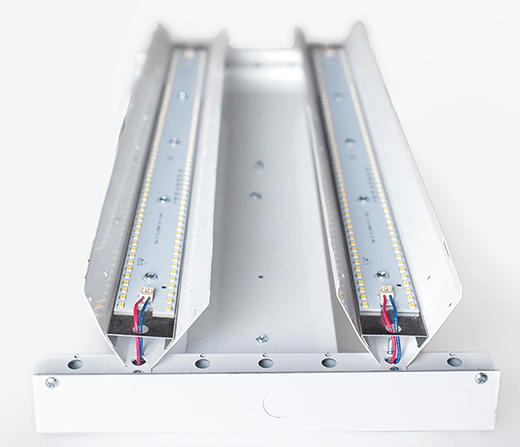

This LED Highbay and Lowbay fixture from GreenLine Industries is designed with today's most advanced LED technology. With power consumptions a fraction of standard HID or fluorescent fixtures and efficacies up to 116 lumens per watt, this is a fixture that provides the lowest cost per delivered lumen in the industry. With lumen packages ranging from 12,000 lumens (104 watts) all the way up to 48,000 lumens (406 watts) we can meet any application's needs. Mounting heights can range from under 15' to 60' in any warehouse, gymnasium, manufacturing, or industrial facility. Standard configurations come with a 5000K color temperature and the fixtures are cable ready for installation.

Fixture Config.

2' - 2 module

2' - 4 module

4' - 6 module

4' - 8 module

Wattage

104

206

310

406

120/277v Amps

.866/.38

1.72/.74

2.58/1.12

2.94/1.28

Lumens

13,366

26,732

40,098

53,465

Efficacy

133.77

133.77

133.77

133.77

Notes

CRI = > 82

Dry/Damp (IP-30)

Warranty: Limited 7 years
