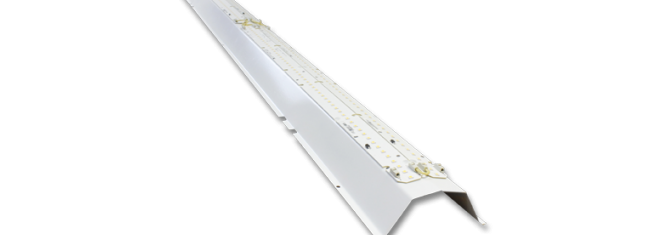

LED Lay-In Retrofit

Tired of replacing bulbs or ballasts? Our LED retrofit eliminates the ongoing maintenance found in today's linear fluorescent applications by providing a solution that will still provide 93% of the initial light even after 100,000 hours of use.

This retrofit was designed with the latest in LED technology while conscientiously providing an easy installation for the installer. This retrofit is designed to snap in place (or tek screwed) over the current ballast cover in any 1x4, 2x4 or 2x2 existing linear T12, T8, or T5 fixture. The combination of LED technology and engineered design allows GreenLine Industries to supply the market with an LED retrofit that is the lowest cost per delivered lumen in the industry. In other words, we welcome the challenge to compare our LED retrofit to others. At 120+ raw lumens per watt, you will not find this anywhere else while providing a long term sustainable solution. Our 48 watt LED retrofit is 65% less energy than a 4-Lamp T8 fixture.  Color temperatures available are 3000K, 4000K, and 5000K.

System Lumen Configurations

2' x 2' 2 Module = 3,552 Lumens @ 27w

2' x 4' 2 Module = 6,689 Lumens @ 52w

2' x 4' 4 Module = 7,105 Lumens @ 48w

2' x 4' 4 Module = 13,239 Lumens @ 48w 4A

Notes

Performance data taken at Tc = 45°C ambient.

Life Expectancy = > 100,000 hours

Lumen maintenance value is based on LM80 testing and TM-21 calculation projections.

CRI = > 82

Dry/Damp (IP-30)

Warranty: Limited 7 years
