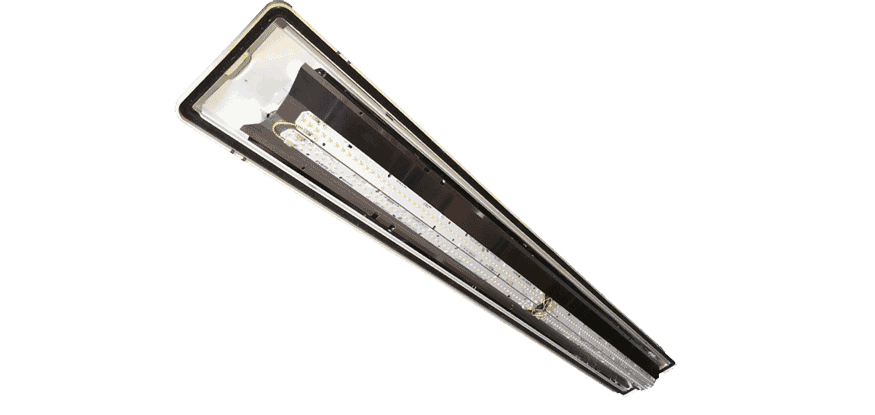

4' Vapor Tight LED - Wet Locations

This is a 4’ fixture that has a gasket and enclosed protecting the LED’s from the elements of water, dust, and impact. This fixture comes with a clear lens allowing for maximum light pass-through.

Utilizing LED technology that delivers 93% of the initial light even after 100,000 hours of use, providing a lighting solution second to none in the industry.

System Lumen Configurations

4' - 2 Module = 6,689 Lumens @ 52w

4' - 4 Module = 7,105 Lumens @ 48w

4' - 4 Module 4A = 13,239 Lumens @ 98w

Notes

Performance data taken at Tc = 45°C ambient.
Life Expectancy = > 100,000 hours
Lumen maintenance value is based on LM80 testing and TM-21 calculation projections.
CRI = > 82
Dry/Damp (IP-30)
Warranty: Limited 7 years
